Fully mix high demand building materials

Planetary Mixer

Planetary Mixer



优势概览:

    Efficient Mixing Action: The planetary mixer's innovative design, with its beater(s) orbiting around the bowl while simultaneously rotating on their own axis, ensures a thorough and efficient mixing action. This results in a smooth, lump-free mixture every time.

    Versatility: The planetary mixer can handle a wide range of materials, from soft doughs and batters to stiffer mixtures like bread doughs and pizza doughs. Its versatility makes it a valuable asset in bakeries, food processing plants, and laboratories.

    Consistent Results: The consistent and even mixing action of the planetary mixer ensures that every batch of product is of the same high quality. This is crucial for maintaining brand standards and customer satisfaction.

    Easy to Use and Clean: The mixer's bowl and attachments are often designed for easy removal and cleaning, reducing downtime and ensuring hygiene. Additionally, the user-friendly controls make it simple to operate, even for inexperienced users.

技术参数

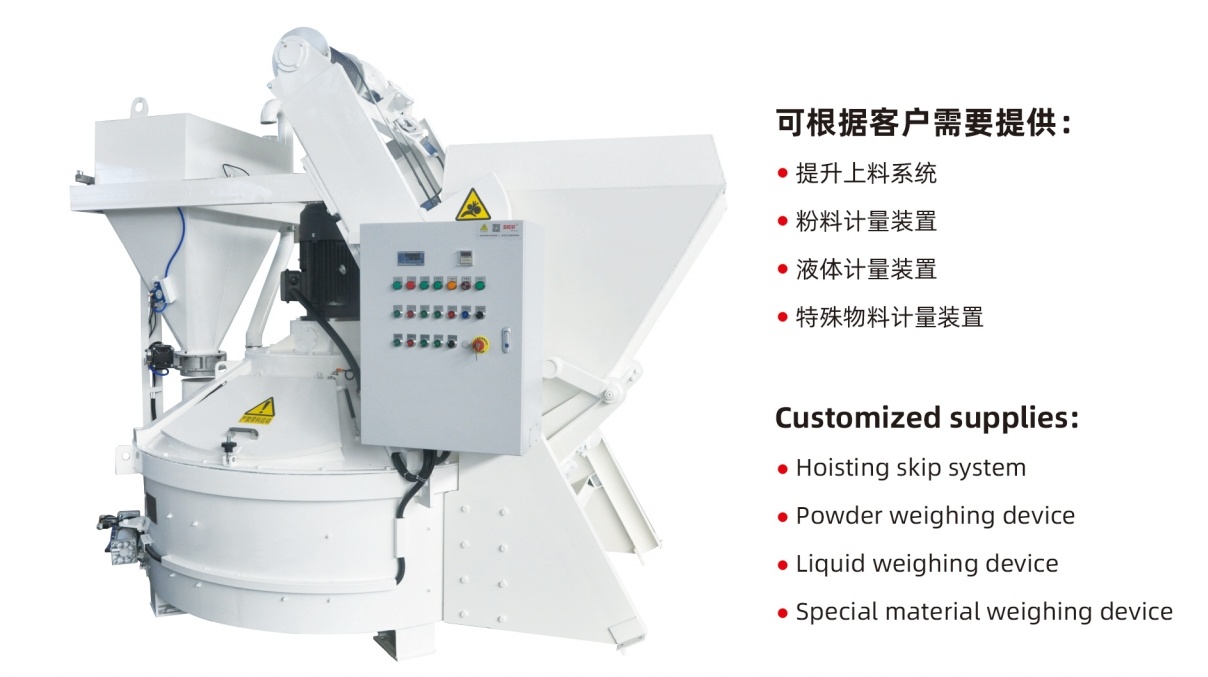

Hoisting Skip and Weighing System

Hoisting Skip and Weighing System

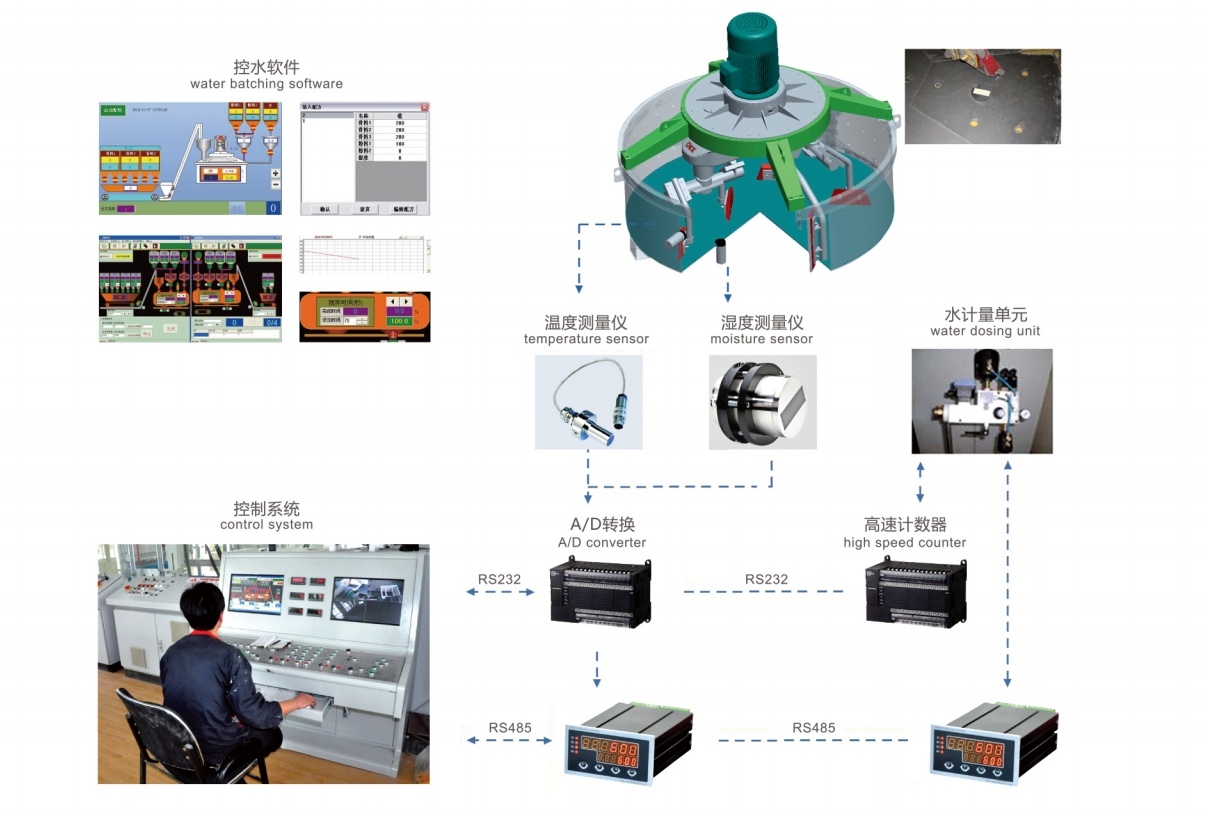

Water Control System

Water Control System

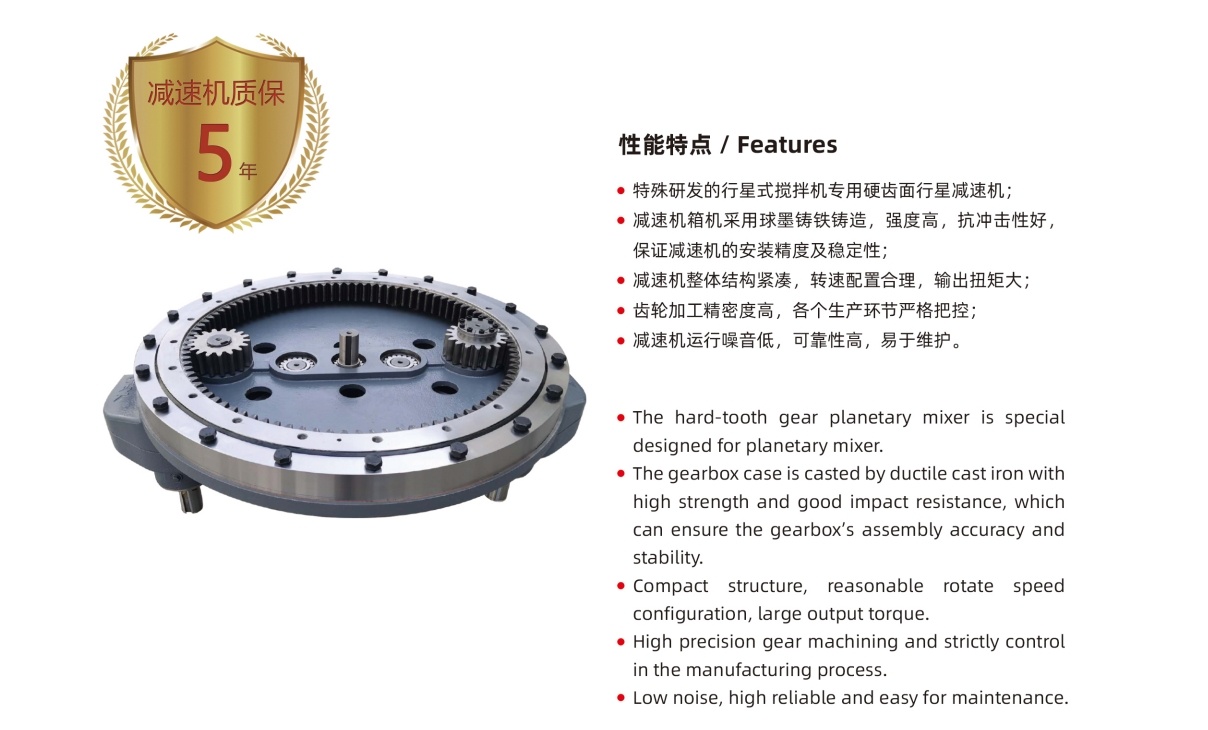

Planetary Gearbox

Planetary Gearbox

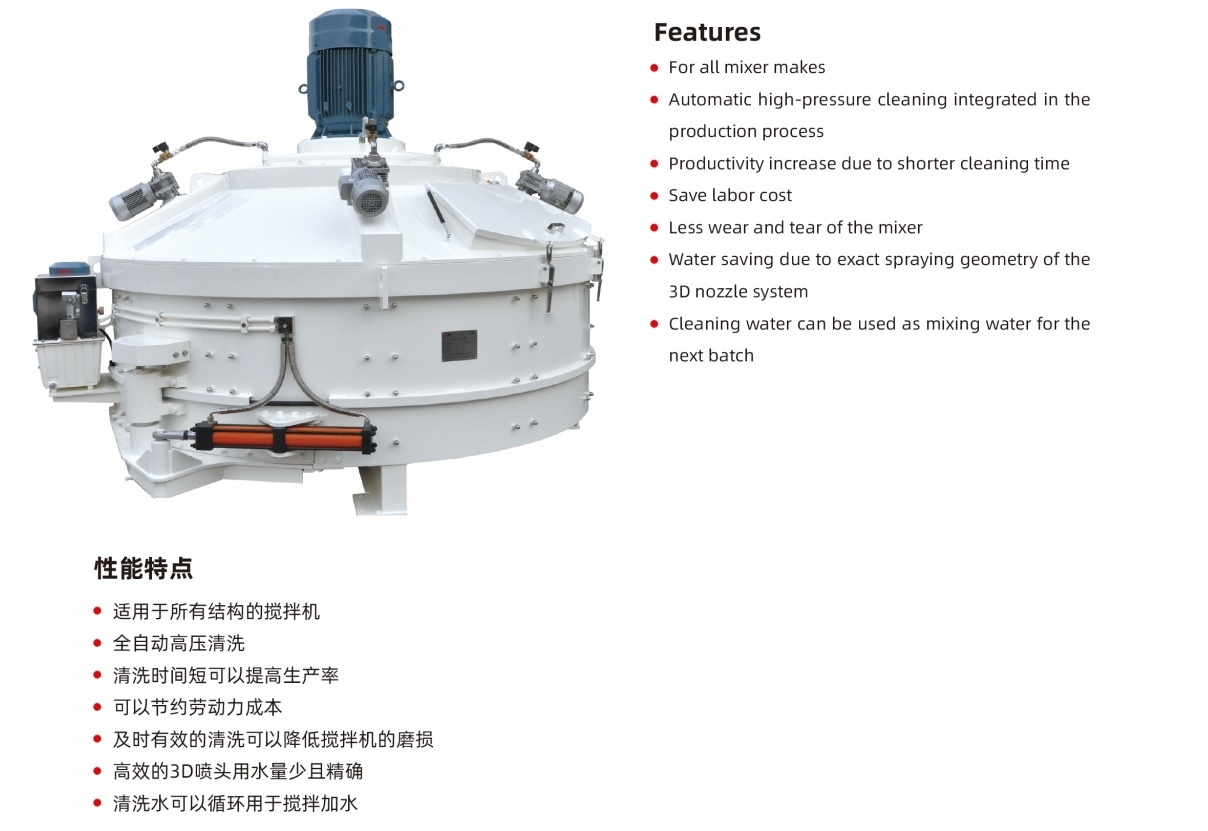

High Pressure Washout System

High Pressure Washout System

技术数据


ModelDry ChargeCompacted Concrete Output per BatchStars & Mixing BladesMotor PowerMaximum Aggregate Size
MixerHydraulic UnitQuality Concrete

DMP500

750L500L1x218.5 kW2,2 kW70 mm
DMP7501125L750L1x330 kW2,2 kW70 mm
DMP10001500L1000L2x237 kW2,2 kW70 mm
DMP12501875L1250L2x245 kW2.2 kW70 mm
DMP15002250L1500L2x255 kW2.2 kW70 mm
DMP20003000L2000L3x275 kW3 kW70 mm
DMP25003750L2500L3x390 kW3 kW70 mm
DMP30004500L3000L3x3110 kW3 kW70 mm
DMP40006000L4000L3x3160 kW3 kW70 mm

Performance data for other mixtures are available on request. All the above data refer to standard specifications. Technical data for customer-specific specifications may deviate from the above data. All technical data are subject to change due to further development of the product. We reserve the right to make changes at any time.


相关产品

Pan mixer

The disc mixer is a kind of machine which is mainly used for raw material mixing...

Planetary Mixer

The characteristics of vertical shaft planetary mixer include compact structure,...

Heavy-Load Planetary Mixer

The heavy-duty planetary mixer is a high-quality concrete mixing equipment speci...
